| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | TC-4, TC-5, TC-6 |
| Manufacturer | Ferndale Safety |
| Brand | Ferndale Safety |
| Has interlock switch | No (No Interlock) |
| Product color | Ferndale Yellow |
| Product Features | Bolt-on, Polycarbonate, Replaceable screen or shield, Adjustable |

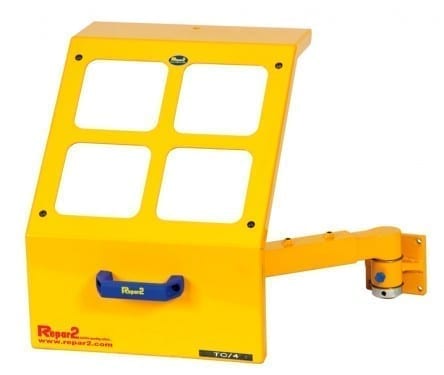

Large Lathe Chip Shield (Front Mount)
From: $533.00

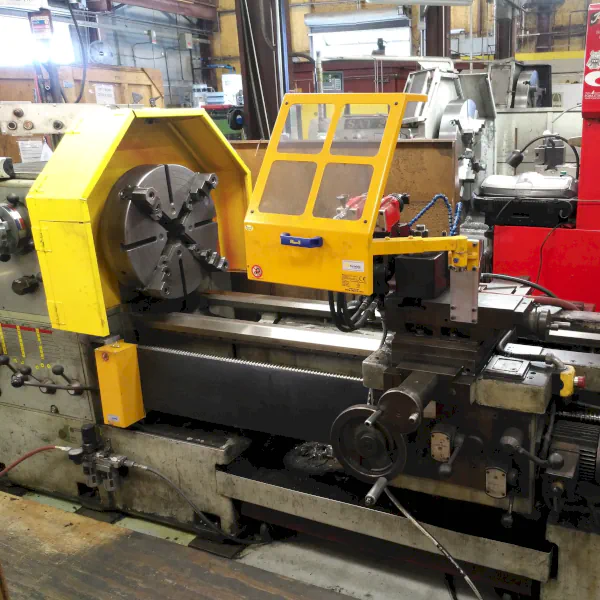

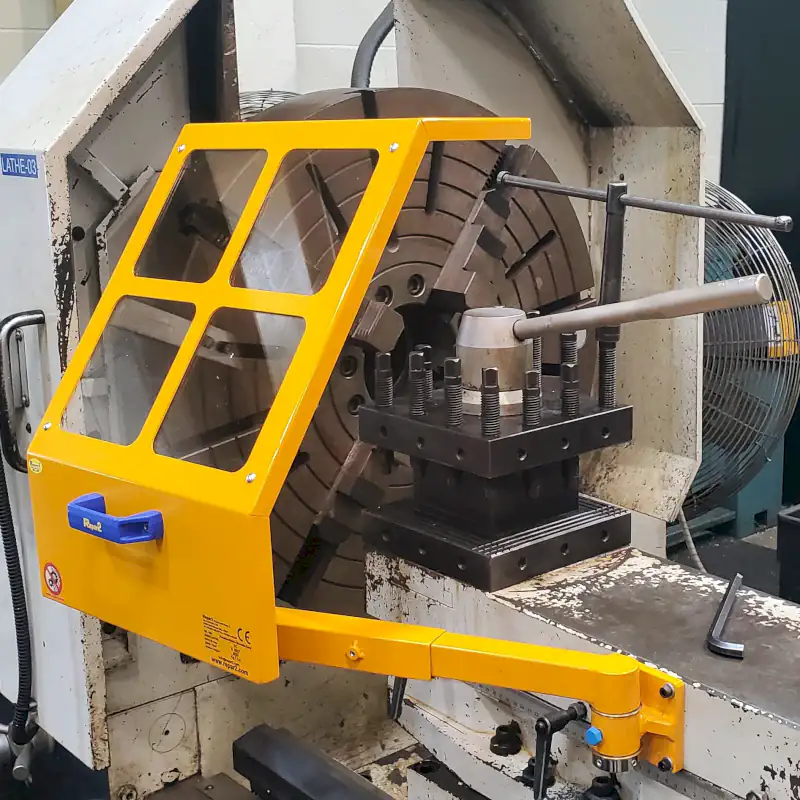

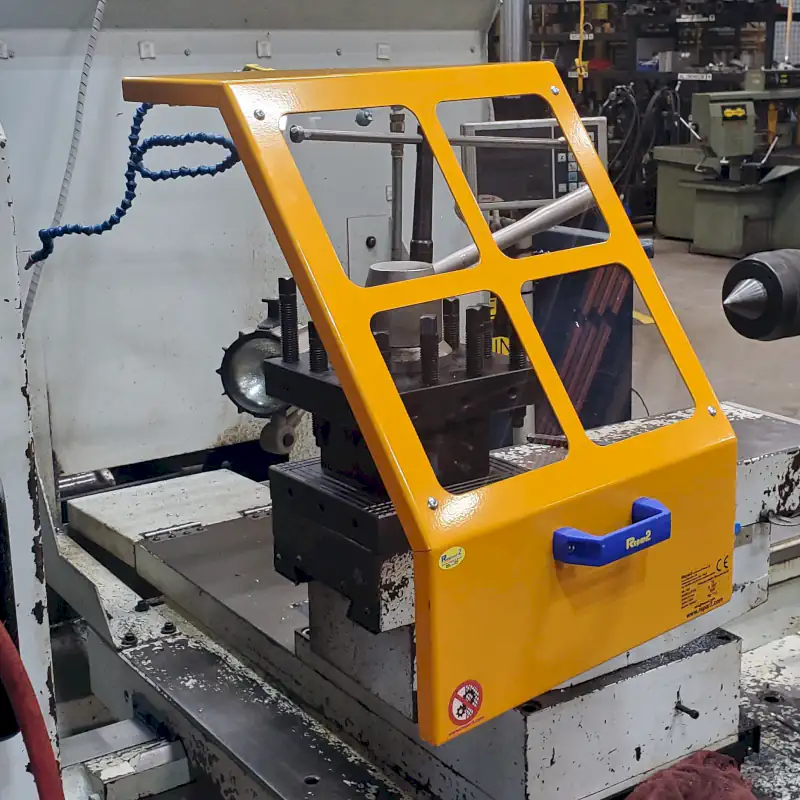

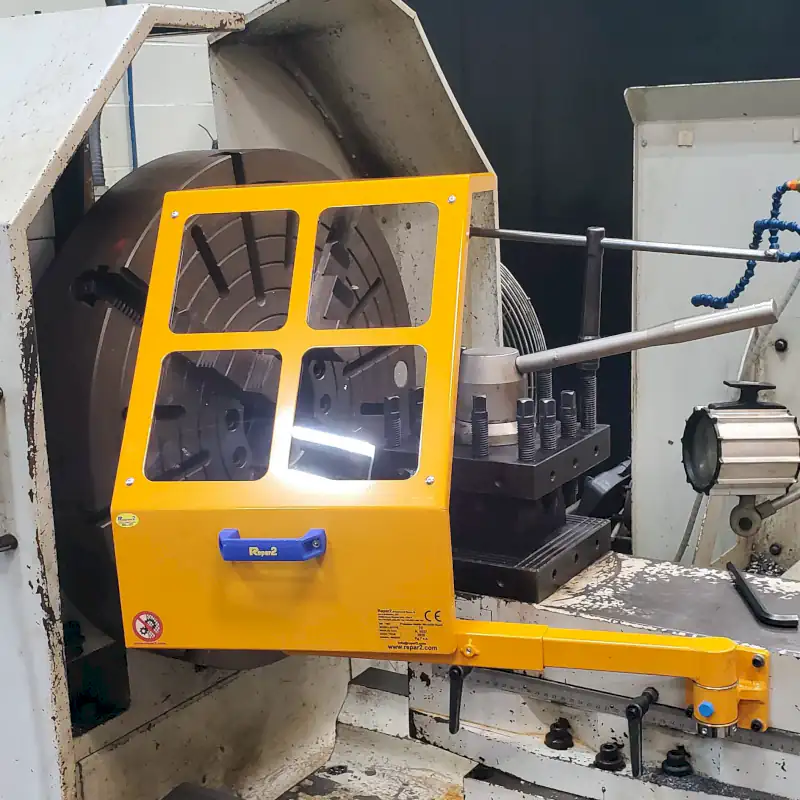

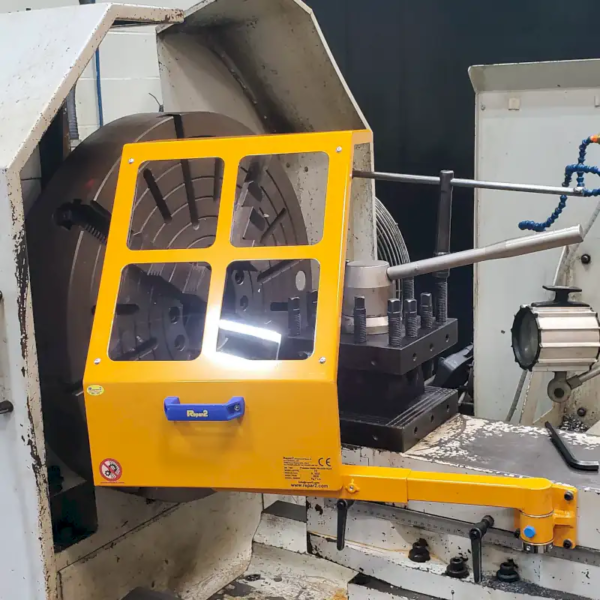

A chip shield is designed to be used on large lathes, that is, lathes with a swing over a bed of 38″ or more.
Note: “Swing over bed” refers to the maximum diameter workpiece the lathe can hold without hitting the bedways.
Important Note: These models do not come with any electrical interlock option.

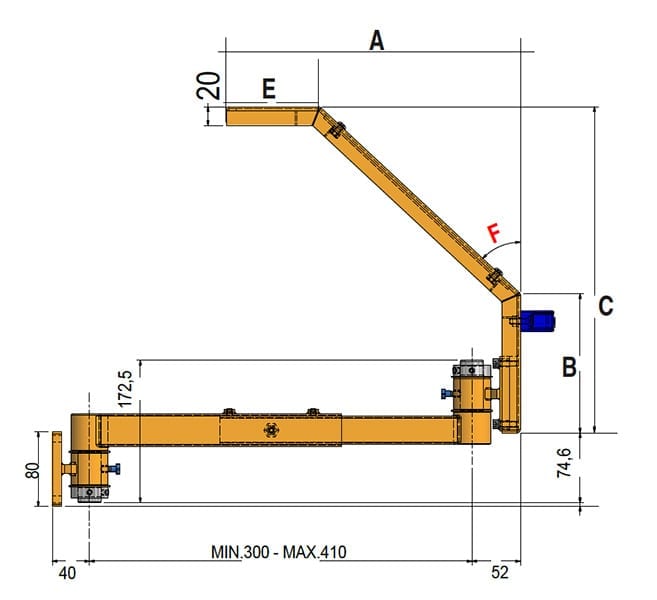

| P/N | A | B | C | Width |
| TC-4 | 13″ | 6″ | 14″ | 12″ |
| TC-5 | 15″ | 6″ | 18″ | 14″ |
| TC-6 | 12″ | 6″ | 18″ | 18″ |
Installation Manual
TC Installation Guide ENDisclaimer: By purchasing Our Products, you agree not to use them for "hot work" (e.g., grinding, welding, soldering, cutting) due to fire risk. Misuse is forbidden, and following all safety guidelines is required. Non-compliance means you accept full responsibility for any resulting harm or damage. For your safety and the effectiveness of Our machine guarding, remain within the "Safe Work Zone" directly in front of the guarding. Standing to the side increases injury risk and breaches our usage policy. Adhering to this rule ensures your safety and the Products optimal performance. For detailed safety and operational guidelines, please see our Terms and Conditions. (click here)
